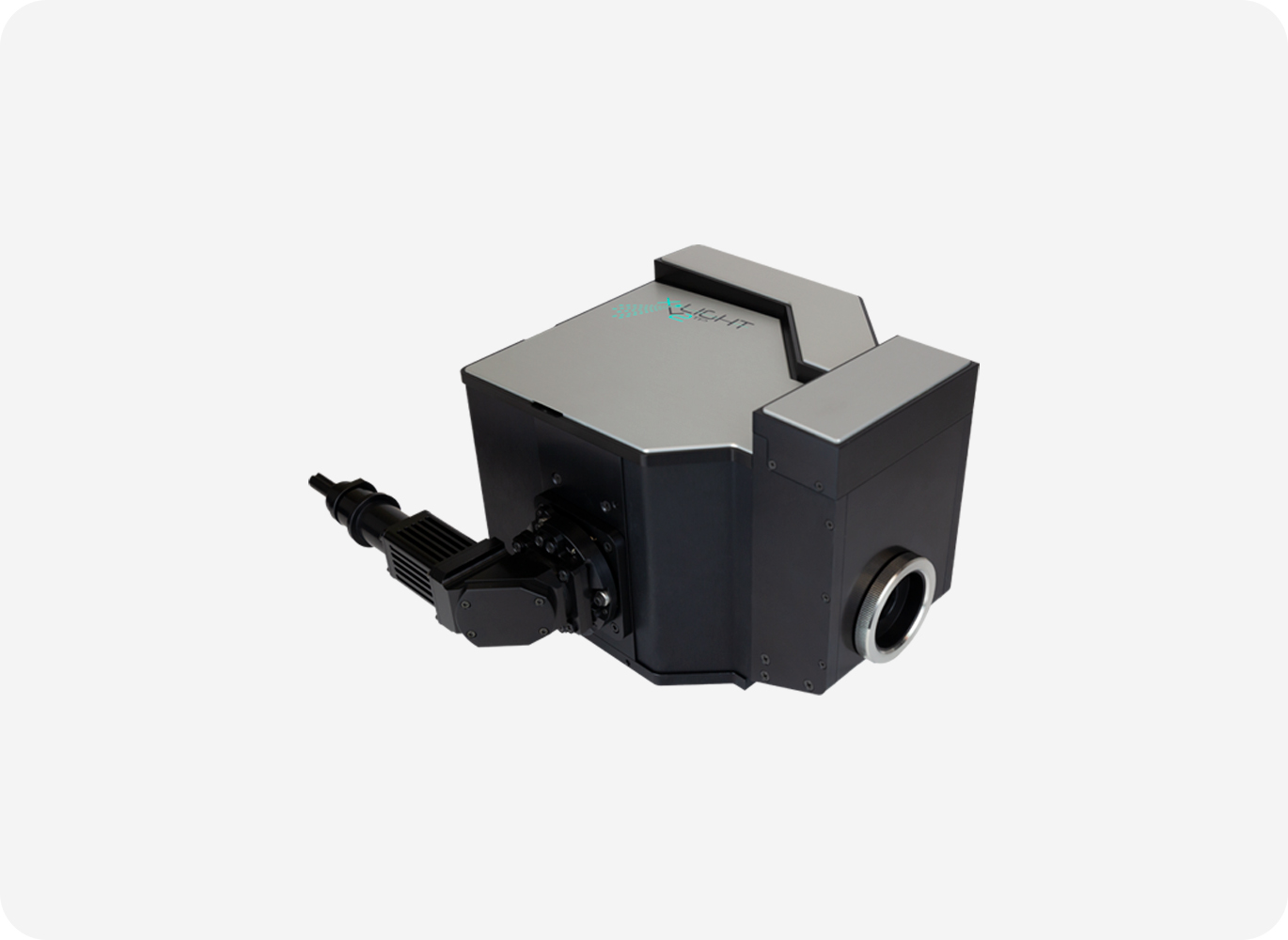

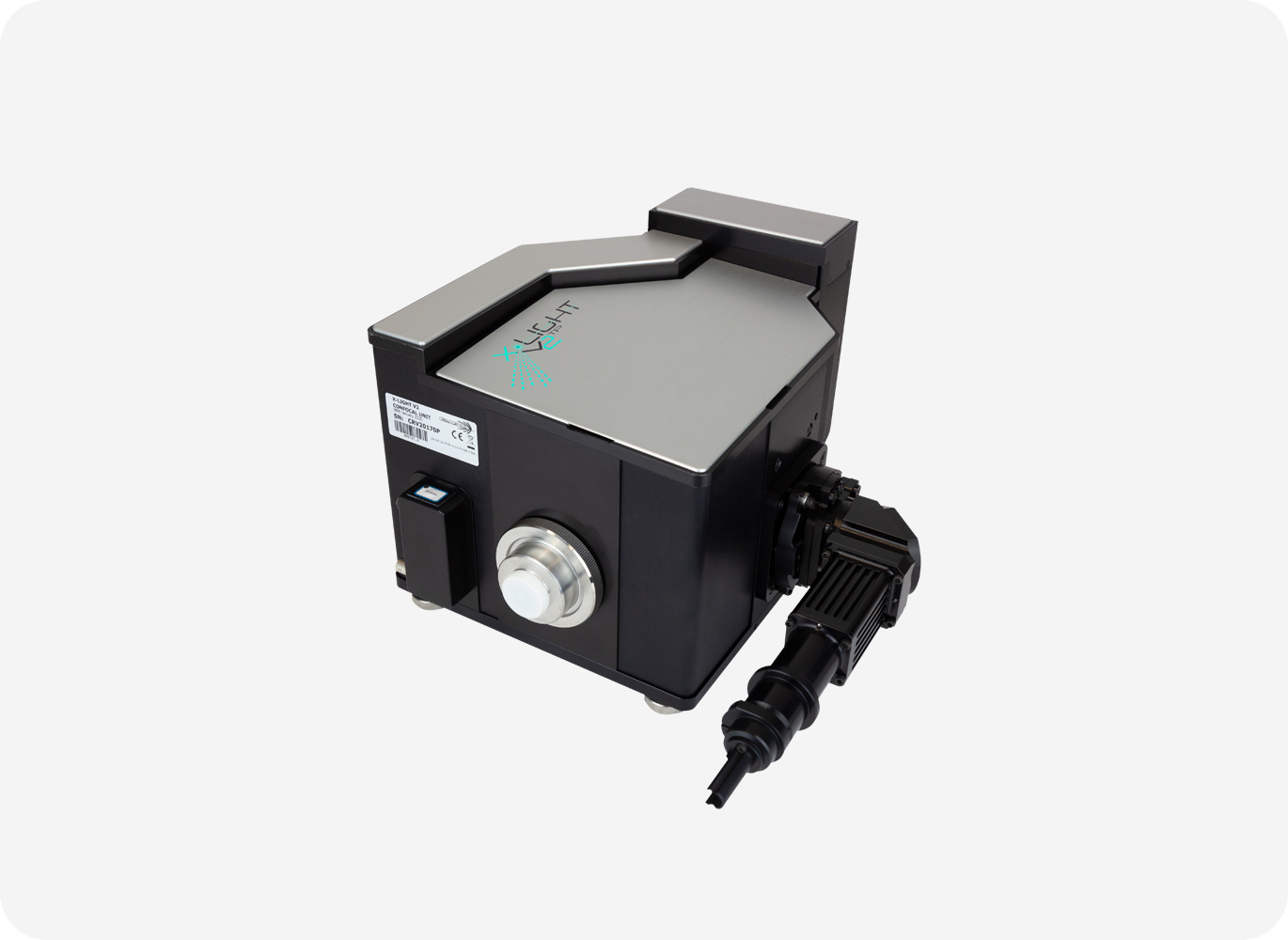

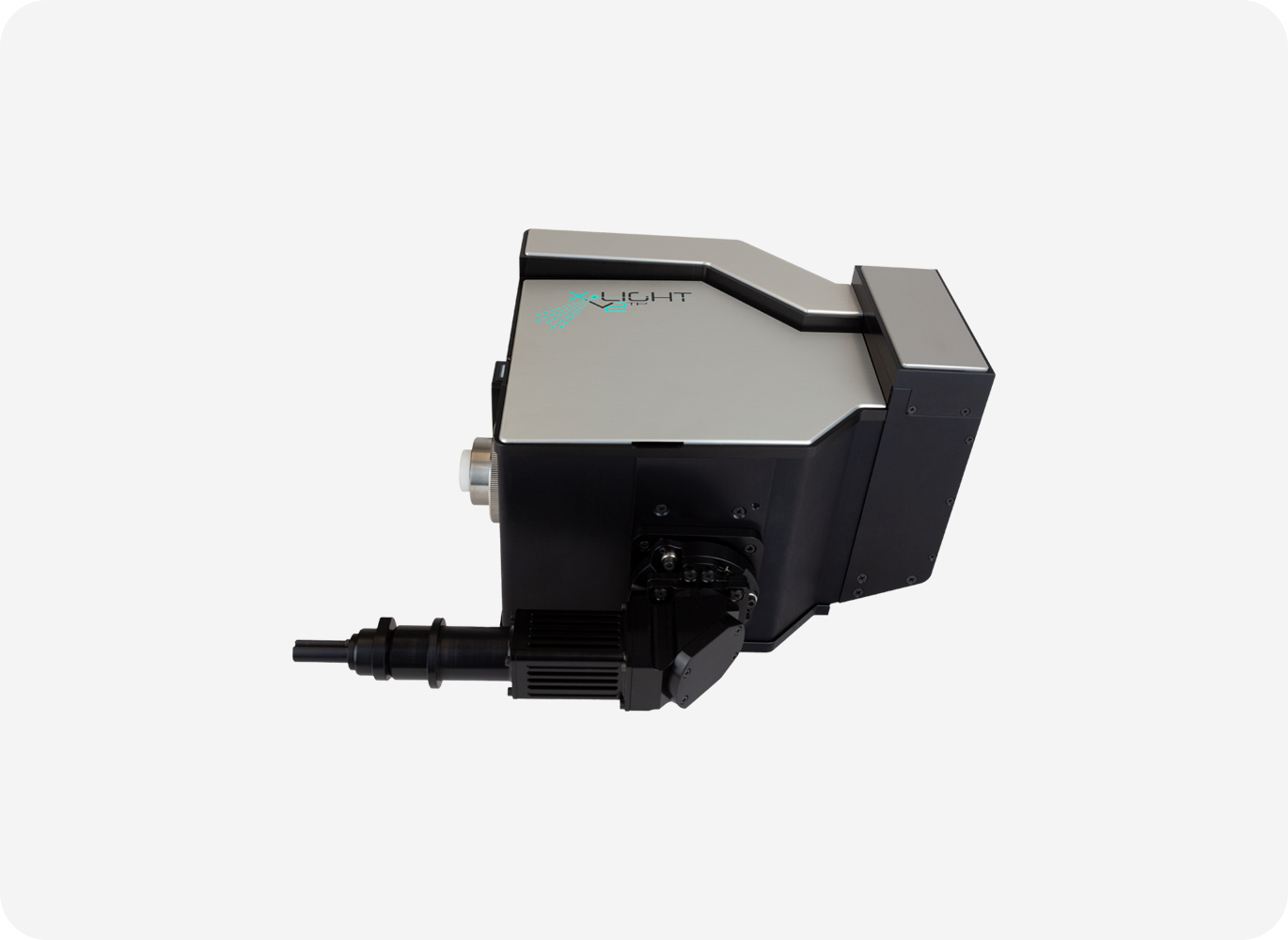

X-Light V2 Spinning Disk Confocal

The HT-X1™ Plus with Spinning Disk Confocal enhances the high-performance HT-X1™ Plus system by integrating an external spinning disk confocal unit for high-quality 3D fluorescence. This configuration provides high-resolution optical sectioning, ideal for detailed analysis of dynamic cellular processes and deep 3D molecular studies in complex structures.

X-Light V2 Spinning Disk Confocal

Specifications

  • Dimension (mm)

    270 (W) × 325 (D) × 226.5 (H)

  • Weight

    11 kg

  • Light source

    Laser diodes

  • Modalities

    Widefield, confocal

  • SD geometry

    50/250 μm (diameter/spacing)

  • Emission filter (nm)

    440/40, 525/50, 600/50, 700/75

  • Image sensor

    Back illuminated sCMOS

    Pixel size: 6.5 μm

  • Quantum efficiency

    95% (wavelength 580 nm)

  • Light source trigger

    3 channels

Ordering information

  • Cat. No.900010-11

    X-Light V2 Spinning Disk Confocal
