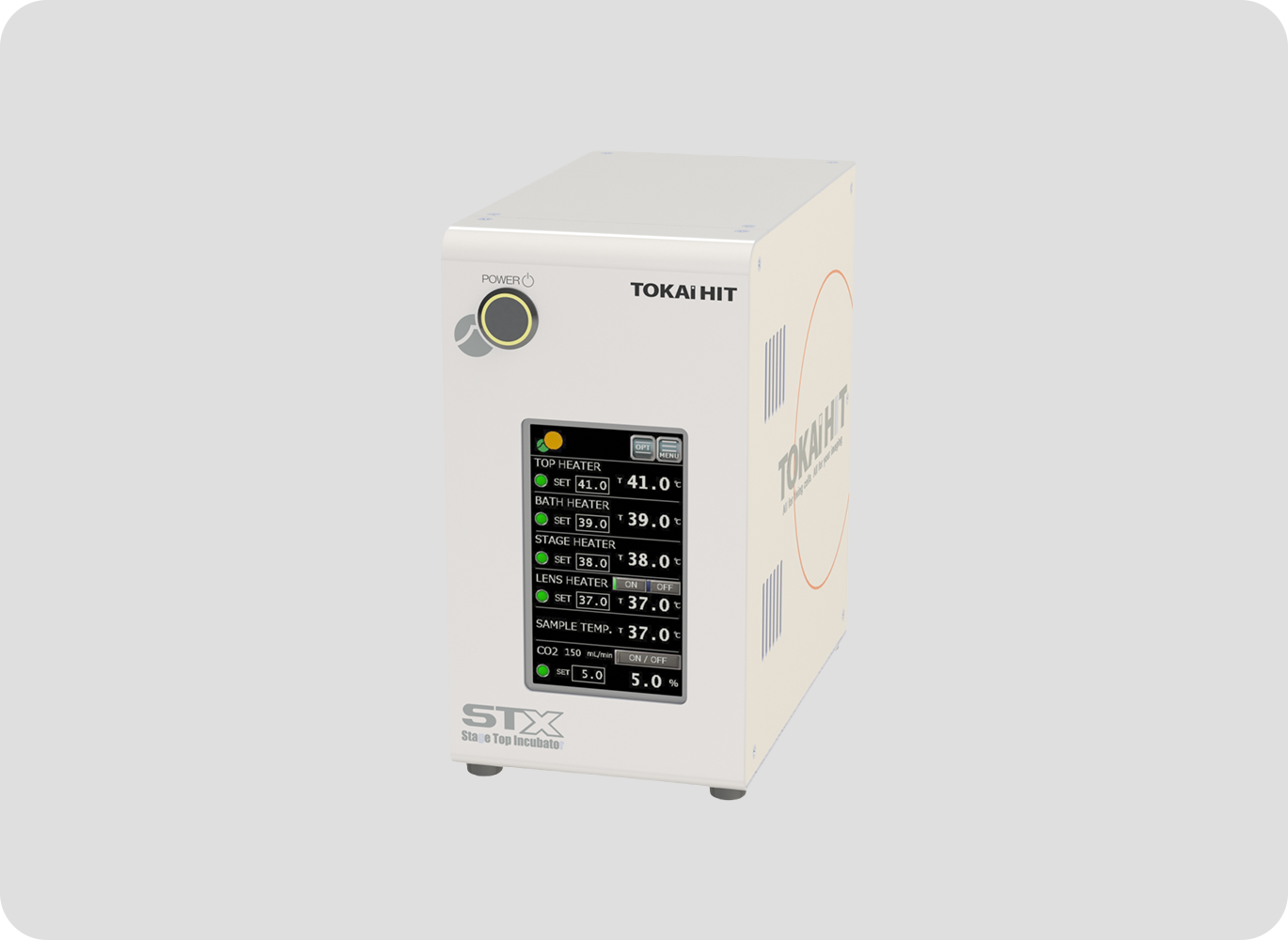

Environmental controller
The HT-X1 system supports a stage-top incubator to maintain an optimal temperature and gas concentration conditions for live cell imaging. The incubator contains a built-in gas mixer unit and a chamber unit for mounting specimens onto the stage.
Environmental controller
Specifications
-
Model
STXG-WSKMXA22B (Tokai HIT)
-
Dimensions
151 (W) x 263 (D) x 196 (H) mm
-
Weight
3.8 kg
-
Temperature setting range
Sample temperature: 37 °C
Top heater: 10 °C – 65 °C
Bath heater: 10 °C – 50 °C
Stage heater: 10 °C – 50 °C
Lens heater: 10 °C – 45 °C
-
Rise time
10 min to reach 50 °C
-
Temperature accuracy
Within 0.3 °C
-
Humidity control
Heated humidification by the heating bath unit
Recommended water volume: 32 mL
-
CO₂ concentration range
5% – 20%
Control method: PID control
Accuracy: ±0.1%
-
Gas type
100% CO₂
-
Gas pressure
Input: 0.1 MPa – 0.15 MPa
Output: 160 mL per min
-
Power source
100 - 240 V AC ±10%, 50/60 Hz
-
Maximum power consumption
110 W
Ordering information
-
Cat. No. 900101-01
Environmental Controller
